AXIS 12/24V 3" LCD Screen, 6" Speaker, Reverse Camera Bundle - AX1805BTSC

If your looking to upgrade the radio in your 4WD then look no further than the AXIS1805BTSC bundle we've put together for you. We've bundled the AX1805BT with 3-inch screen + a pair of 6-inch speakers + a reverse camera in one convenient bundle!

AX1805BTSC

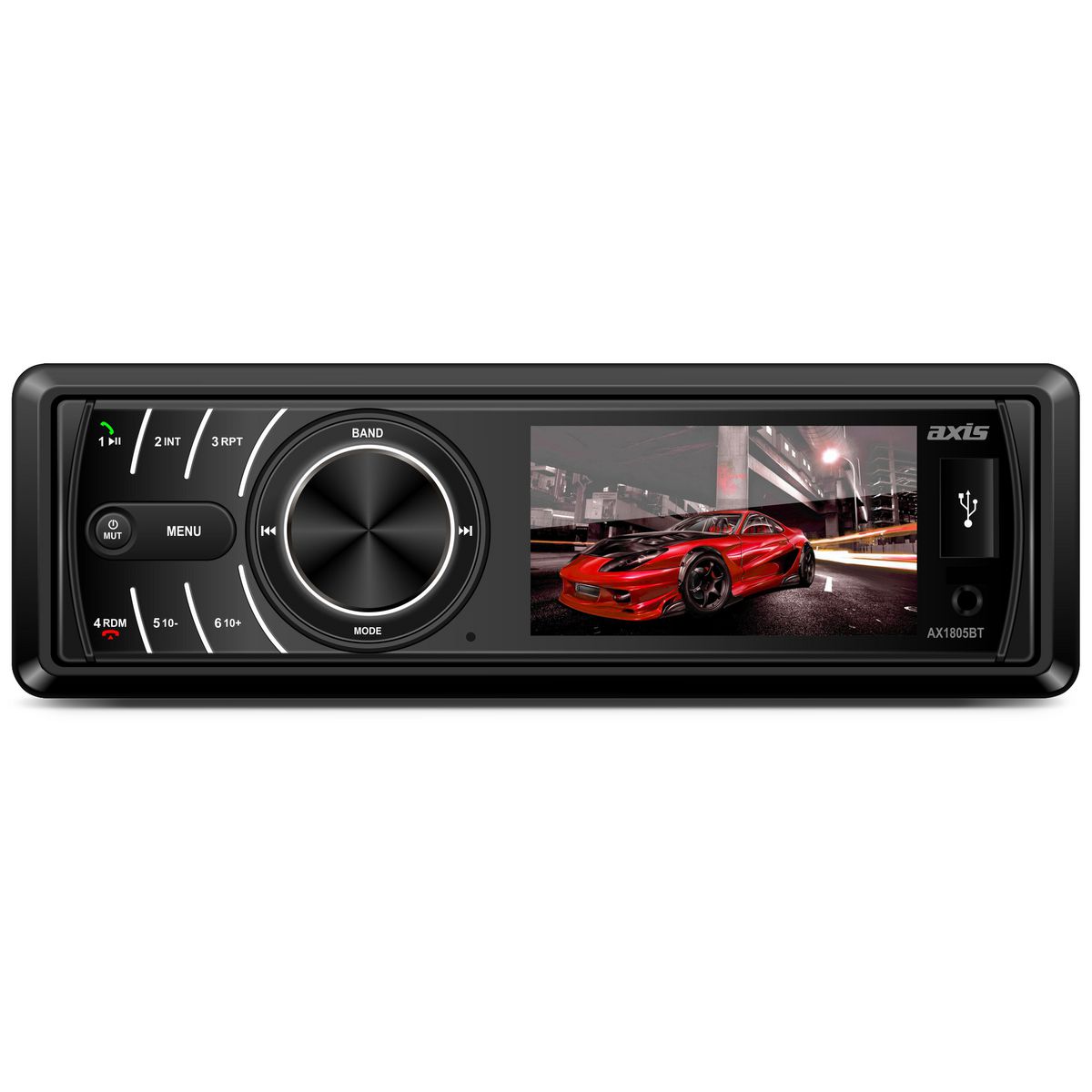

If you're wanting a single din head unit, with the ability to have an integrated reversing camera in your 4WD? Look no further! Axis brings you a fantastic, robust mechless head unit in the AX1805BT. The AX1805BT delivers a state-of-the-art multimedia and Bluetooth experience in a compact single-din style head unit perfect for most vehicles.

This head unit sports a 3 inch LCD screen, the ability to include a reversing camera in your 4WD may be something that you hadnt thought was possible due to not wanting/having the space for a bigger screen. Weve even included the reversing camera in the kit for you along with a set of 6" speakers! Along with the screen, the illuminated controls, digital clock, and fixed face panels increase the look and practicality of this head unit.

The dimensions for the chassis of AX1805BT is 178W x 50H x 96 D (mm). It comes with the ISO wiring harness in the box along with installation hardware.

GENERAL

• 3 Inch LCD
• Fixed Face Panel
• Illuminated Controls
• 12/24 Volt DC (10.8 32V)
• Ultra Memory
• Digital Clock
• Dimensions:
• 178W x 50H x 96D mm (Chassis)
• 188W x 58H x 20D mm (Front Panel)

AUDIO

• 4 x 45W Max Power
• EQ Presets
• Loud/Mute
• Telemute
• 4-8 Ohm Speaker Impedance
• 2CH RCA Pre-Out

MULTIMEDIA

• 1 x USB Input (2A Charging) (Front) MPEG5 A/V Playback, Up to 64GB Support
• 1 x 3.5mm Aux-In (Front)
• 1 x Video Input
• 1 x Camera Input
• 2 x Video Output

TUNER

• PLL Synthesized AM/FM Stereo
• ELITE Tuner (FM 87.5-108 MHz; AM 522-1710 Khz)
• Interference Absorption Circuit
• 30 Station Presets (18 FM, 12 AM)
• Mono/Stereo

BLUETOOTH

• Hands-Free
• A2DP Audio Streaming
• Internal Hands-Free Microphone

INCLUDES

• ISO Wiring Harness

SD23 Reverse Camera

• Image Device: 1/3 CMOS
• Diagonal Viewing Angle: 165
• Horizontal Viewing Angle: 120
• Signal System: PAL
• Effective Pixels: 640 x 480
• Resolution: 480 TV Lines
• Compatibility: All Monitors with RCA Input
• Lens: Full Glass
• Orientation: Selectable Mirror/Non-Mirror
• Guidelines: Selectable On/Off
• Night Vision: 0.2 Lux with 4 IR
• Ingress Protection: IP67
• Integrated Microphone: No
• Operating Temp: -20 to 70
• Power Consumption: 90-300mA
• Connection: Mini 4 Pin Terminated RCA (M)
• Lead: 8M
• Dimensions: 23.4W x 23.4H x 25D mm (Excluding Bracket)
• Power Supply: 9-32V DC

XR62 Speaker

• System: 2-Way Coaxial
• Driver Size: 6 (158mm)
• Driver Material: Black Polypropylene
• Surround Type: Rubber
• Voice Coil Size: 25.9mm
• Voice Coil Type: ASV
• Tweeter Type: Mylar
• Tweeter Size: 25mm
• Tweeter Voice Coil: 13mm
• Peak Power Handling: 110w
• Nominal Power Handling: 25w
• Frequency Response (+/-3dB): 50-20,0000Hz
• Resonant Frequency: 75Hz
• Sensitivity (1m/1w): 87.5dB
• Nominal Impedance: 3.6ohm
• Magnet Size: 80 x 12mm
• Magnet Weight: 8.8oz
• Construction: Pressed Steel
• Mounting Depth: 51mm
• Mounting Hole: 123.5mm to 142mm

INCLUDES

• Steel Mesh Covers
• 2 Metres of Speaker Wire
• Mounting Hardware
• Mounting Template
