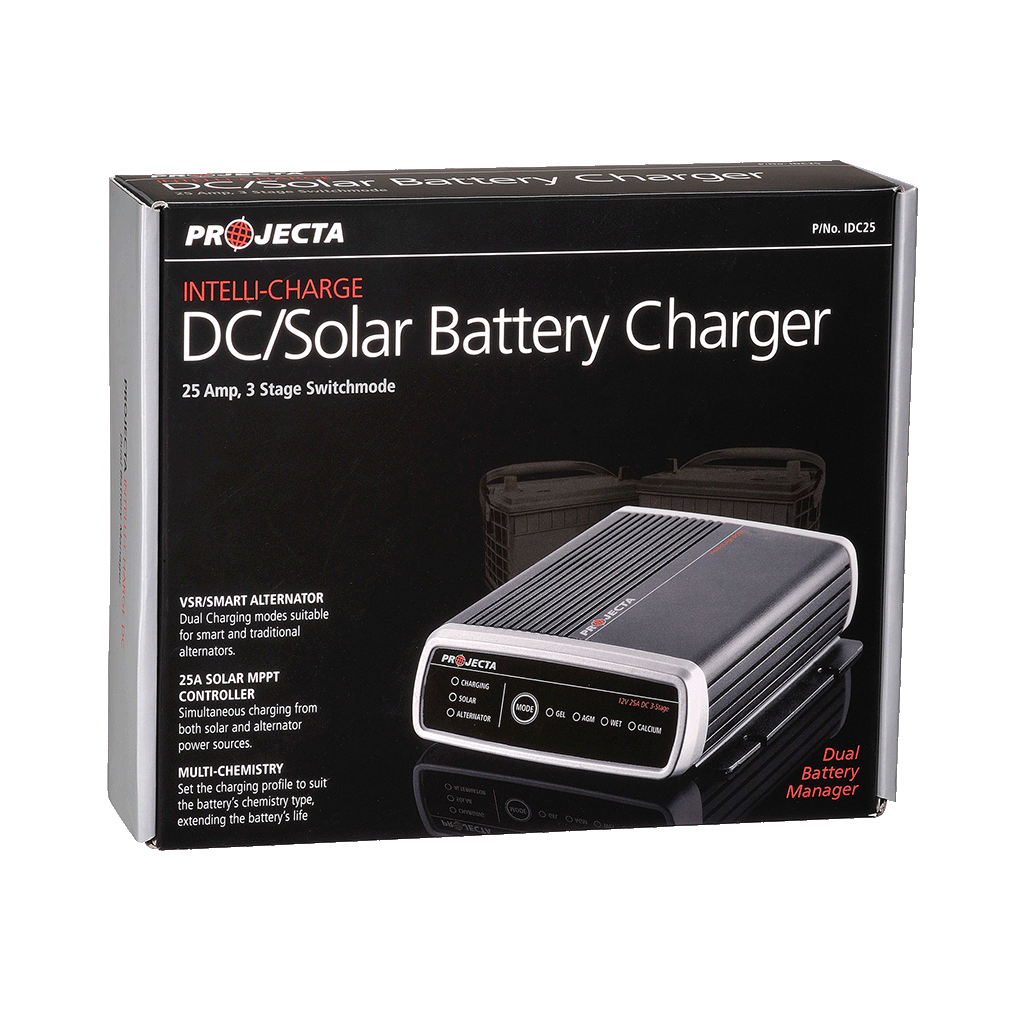

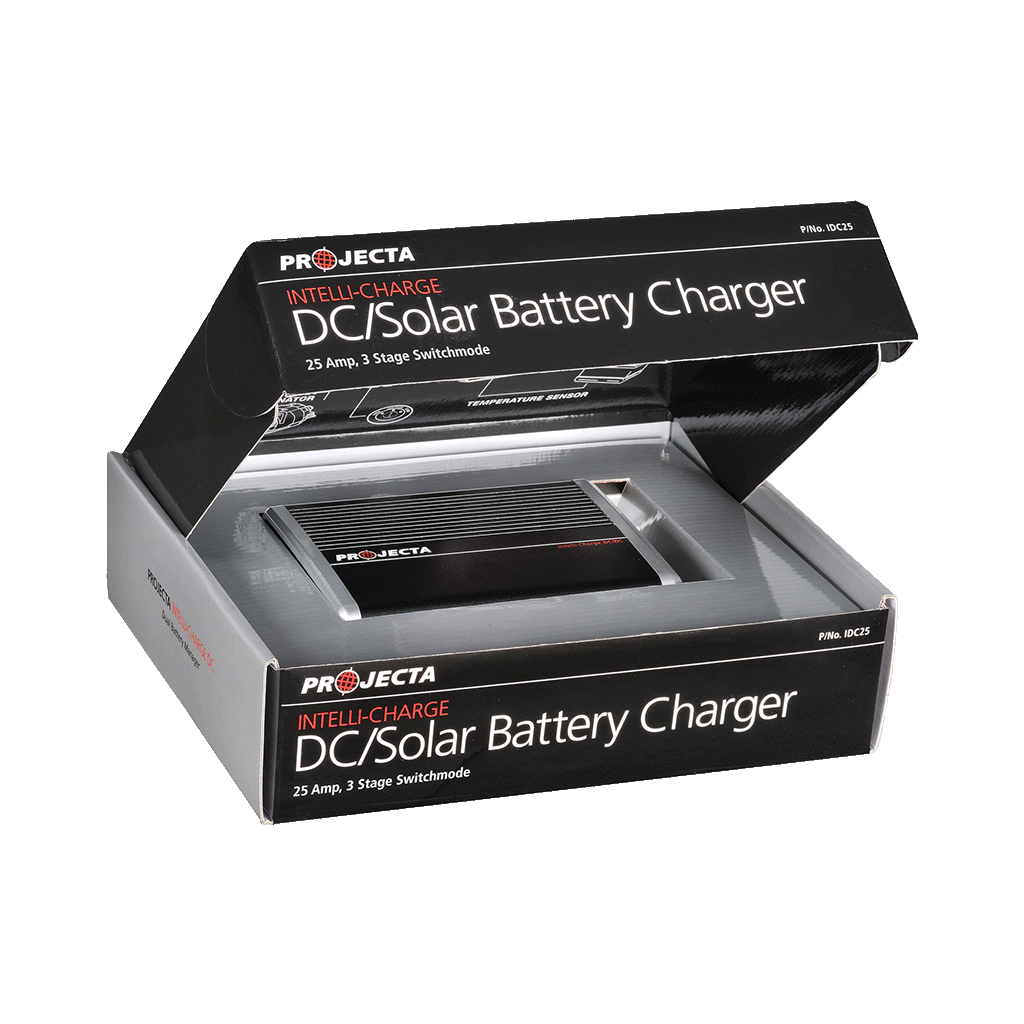

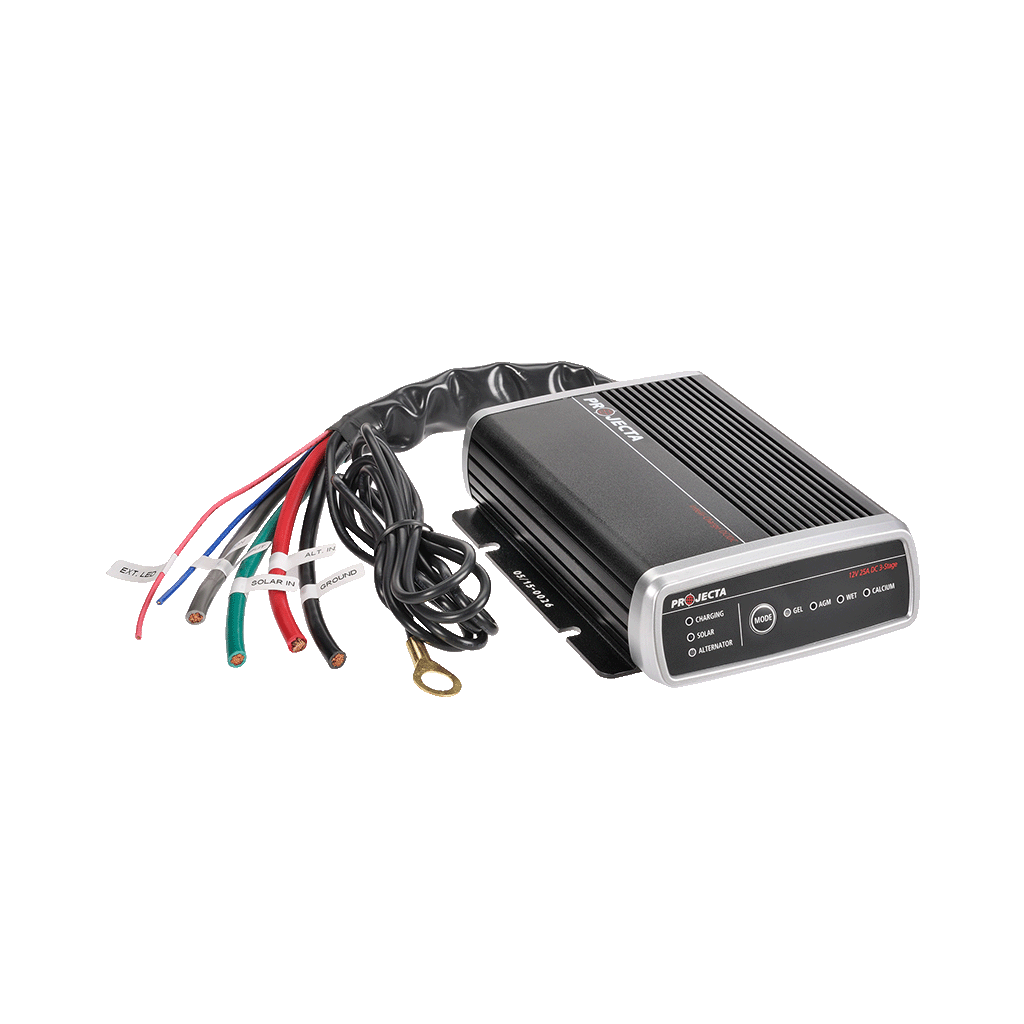

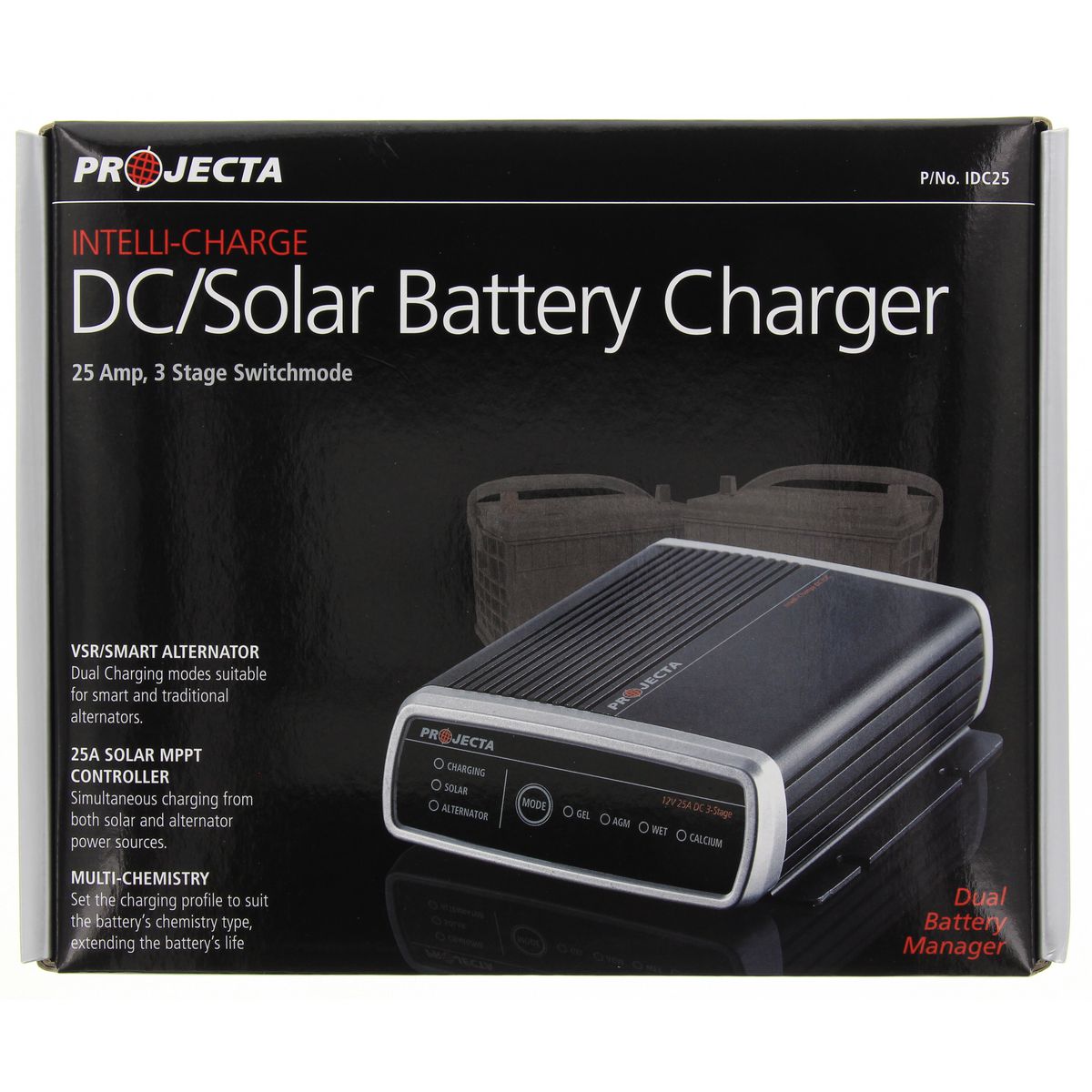

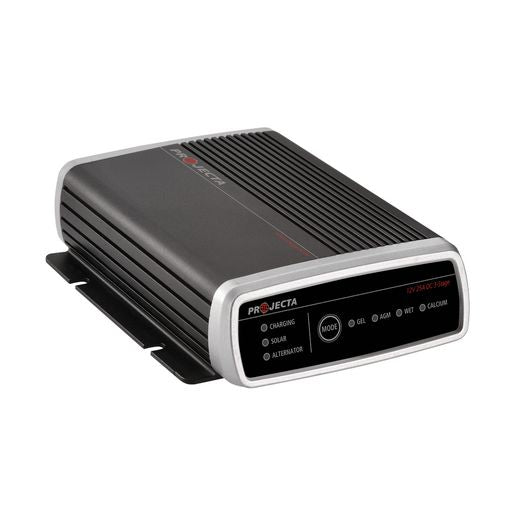

PROJECTA 25A 12V DC-DC Battery Charger IDC25

Projecta Intelli-Charge IDC25 is a dual battery management system ideal for 4WD and camper trailer applications. Intelli-Charge IDC25 is an advanced 3-stage charge simultaneously from both alternator and solar inputs, you'll always have a charged second battery with Projecta

Features:

• IP67 rated, IDC25 is dust, splash, and shockproof
• Operate in temperatures up to 80C
• IDC25 is engineered to work with both smart and conventional alternators
• Set the charging profile to suit 4WD battery chemistry type: Wet, Calcium AGM, or Gel
• IDC25 can simultaneous dual battery charging from both solar and alternator inputs
• Over temperature, reverse connection, over/under, and spark-free protection

Specifcations

• Charge Type - 3 Stage
• Alternator Input Voltage - 9-32Vdc
• Max Solar Input - 23Vdc, 385W
• Output Current - Input 9-11Vdc 20A, Input 11-32Vdc 25A
• Back Drain on AUX Battery - 9.5-10.5mA
• Charger Control - Gel: 14.1V, AGM: 14.4V, Wet: 14.7V, Calcium: 15.4V
• Battery Capacity - 75-300Ah
• Batteries Supported - Gel, AGM, Wet & Calcium
• Smart Alternator - 12V Vehicle 24V Vehicle
• Turn On: 12.2-20V Turn On: 24.4-32V
• Turn Off: <11.9V Turn Off: <24V
• Convential Alternator - 12V Vehicle 24V Vehicle
• Turn On: 13.4-20V Turn On: 26.8-32V
• Turn Off: <12.8V Turn Off: <25.6V
• Operating Temperature -10C to +80C
