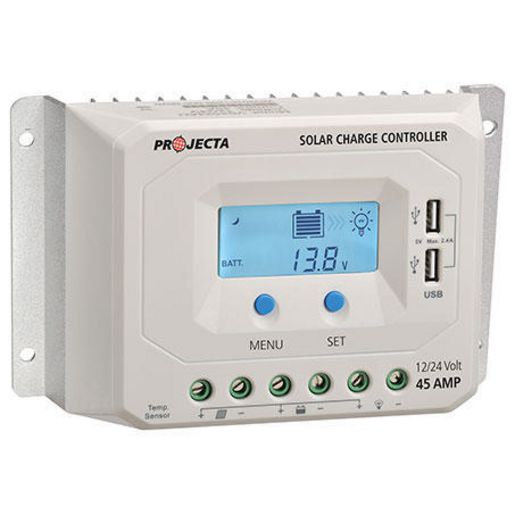

PROJECTA 45A 12/24V Solar Charge Controller 4 Stage Auto SC245

The Projecta SC245 is ideal for larger deep-cycle battery banks often found in motor homes, caravans, houseboats, and remote shacks. SC245 is a sophisticated controller and boasts a host of intelligent features enabling the user to customize the charge settings to maximize the life of the battery and performance.

Features:

• LCD Displays battery voltage, charging current, charging capacity, fault codes, and more
• 2x  5V 2.4A USB ports for powering directly from the controller
• Set the charging profile to suit battery chemistry type: Wet, AGM, or Gel, or user settings
• Set the Low Voltage disconnect voltage point to best suit your application, protecting your battery from over-discharge
• Built-in Temperature sensor enables the unit to optimize charge performance and offer additional protection. Optional sensor probe also available

Specifications:

• Input - 12V or 24V
• Max Input - 50VDC,45A
• Max Charge/Load - 45A
• Max Panel Size - 540W (12V)
• Battery - 12V or 24V
• Charge Control - 4 Stage Charging 12V 24V
• Bulk/Absorption: Gel: 14.2V 28.4V, AGM: 14.4V 28.8V ,Wet: 14.7V 29.4V
• Equalisation: Gel: 14.2V 28.4, AGM: 14.6V 29.2V, Wet: 14.8V 29.6V
• Float: 13.8V 27.6V
• Negative Switching - Yes
• LVD Disconnect -12V: Default 11.1V User Set 917V, 24V: Default 22.2V User Set 1834V
• LVD Reconnect - 12V: Default 12.6V User Set 917V, 24V: Default 25.2V User Set 1834V
• Approval - EMC
• IP Rating - IP22
