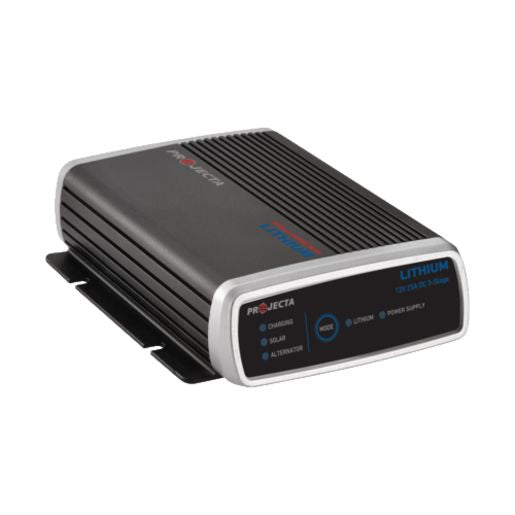

PROJECTA Intelli-Charge 12V 25A 5 Stage 9-32V Lithium Dual DC To DC Battery Charger IDC25L

Projecta Intelli-Charge IDC25L is a dual battery management system ideal for 4WD and camper trailer applications. Intelli-Charge IDC25L is an advanced 3-stage charge simultaneously from both alternator and solar inputs, you'll always have a charged second battery with Projecta.

Features

• IP67 rated, IDC25L is dust, splash, and shockproof
• Safely operates in temperatures up to 80C
• IDC25L is engineered to work with both smart and conventional alternators
• Engineered for use with today's advanced lithium battery technology
• IDC25L can simultaneous dual battery charging from both solar and alternator inputs
• Over temperature, reverse connection, over/under, and spark-free protection

Specifications

• Part No - IDC25L
• 5 Stage Charging
• Alternator Input Voltage - 9-32Vdc
• MAX Solar Input - 28Vdc, 360W
• Output Current - Input 9-11Vdc 20A, Input 11-32Vdc 25A
• Back Drain On AUX Battery - 9.5-10.5mA
• Batteries Supported - Lithium iron phosphate
• SMART Alternator - 12V Vehicle 24V Vehicle
• Turn On: 12.2-20V Turn On: 24.4-32V
• Turn Off: <11.9V Turn Off: <24V
• Conventional Alternator - 12V Vehicle 24V Vehicle
• Turn On: 13.4-20V Turn On: 26.8-32V
• Turn Off: <12.8V Turn Off: <25.6V
• Operating Temperature -10C to +80C
